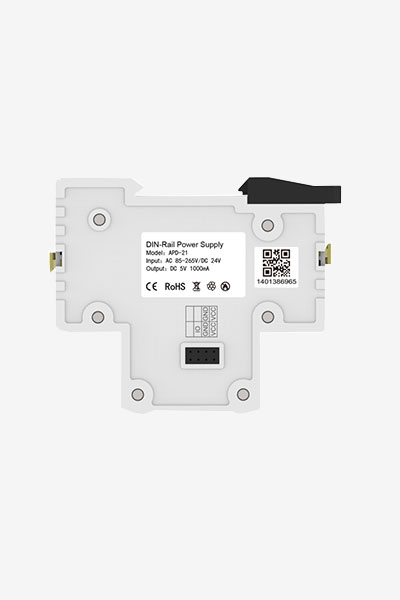

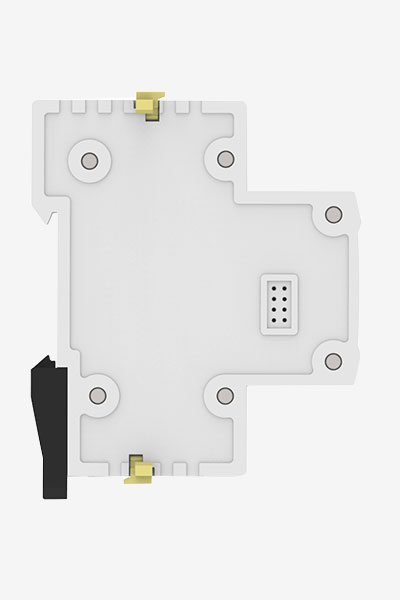

DIN-Rail Power Supply Device
4G/GPRS/WiFi/Ethernet
- DIN-Rail power supply device is used to provide DC 5V input for DIN-Rail logger or other equipment at site. According to real situation, it would turn AC 85-265V or DC 24V power input to DC 5V as output. In addition, an embedded capacitor will power DIN-Rail logger for another 20s in case of power outage, enabling data logger to send out a warning alert.
Feature
Wide Voltage Design
AC Voltage Input Range: AC 85V-265V
DC Voltage Input Range: DC 5V-24V
AC Voltage Input Range: AC 85V-265V
DC Voltage Input Range: DC 5V-24V
High Power Output
Support DC 5V, 2000mA output
Support DC 5V, 2000mA output
Power-off Reminder
Equipped with an embedded capacitor, easy for O&M
Equipped with an embedded capacitor, easy for O&M
Easy Installation
Standard 35mm DIN-Rail mount
Standard 35mm DIN-Rail mount
| DIN-Rail Power Supply Device (Capacitive) | ||
|---|---|---|
| Hardware Parameters | Input Voltage | AC 85～265V/DC 5～24V |
| Output Current&Voltage | DC 5V, 2000mA | |

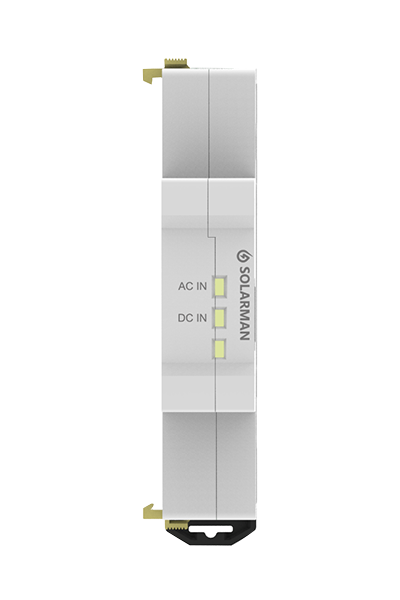

| Indicator Lights | AC IN: AC Power Input | |
| DC IN: DC Power Input | ||
| Working Temperature | -40℃～+75℃ | |
| Storage Temperature | -45℃~+90℃ | |
| Dimension | 91mm×76mm×18mm | |
| Installation Method | 35mm DIN-Rail | |
