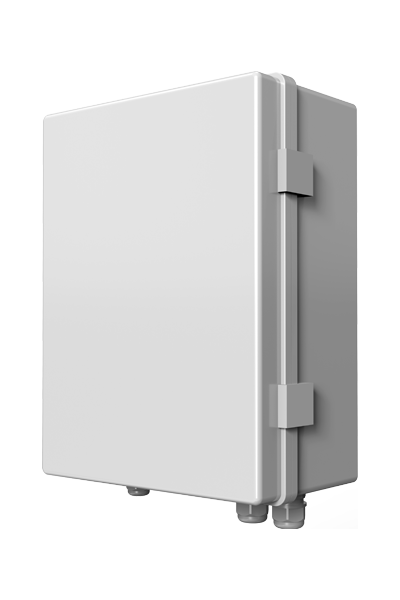

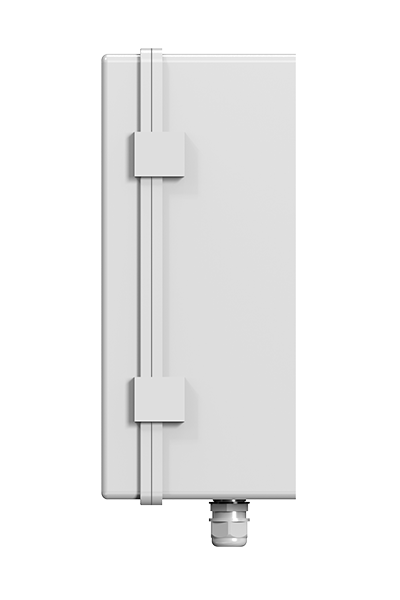

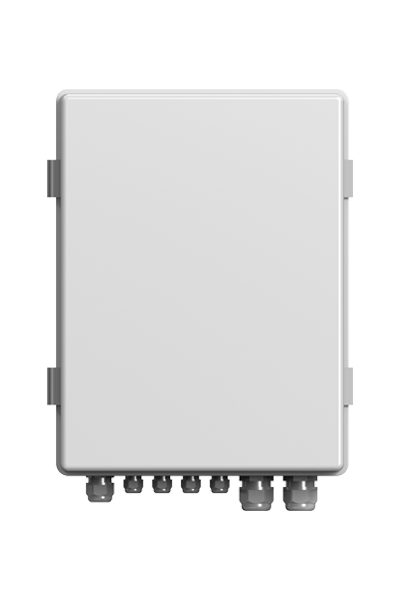

Anti-Reflux Box (Smart Power Controller)
Anti-Reflux Box
(Smart Power Controller)
WiFi/Ethernet
- SOLARMAN anti-reflux box manages real-time situation of grid-tied PV plant by analyzing data from three-phase meter and inverters, and adjusting inverter outputs accordingly to make sure no power injection to the local Grid.
Supported data transmission mode: WiFi&Ethernet.
Feature
Real-time monitoring of power production&consumption situation in case of anti-reflux;
Waterproof design, resistant to bad weather;

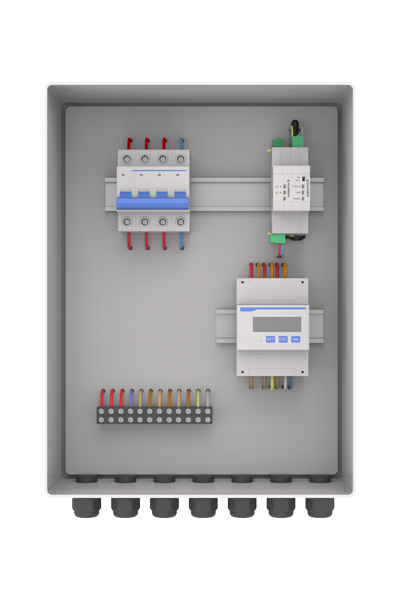

Connection terminal, easy for installation;
Standard air switch, ensuring the safe use;
Compatible with all inverters, conducting the comprehensive management.
| Product Model | SAR-100-10 | SAR-100-5 |
|---|---|---|
| Remote Communication | 2.4G WiFi+Ethernet | |
| Local Communication | RS 485 | |
| No. of Connections | 10 | 5 |
| Power Regulation Period | 5s | |
| Accessing Method | Three-Phase Four-Wire/Three-Phase Three-wire | |
| Working Voltage | 3×230/400V 50/60Hz | |
| Working Current | 3×1.5(6)A | |
| CT (Regular) | 250/5A, 600/5A, 800/5A, 1000/5A, 1500/5A, 2000/5A | |
| IP Grade | IP65 | |
| Working Temperature | -30℃~+70℃ | |
| Working Humidity | 5%-95% (No Condensation) | |
| Installation Method | Wall-Hanging | |
